ADC&DAC2000

ADC&DAC2000

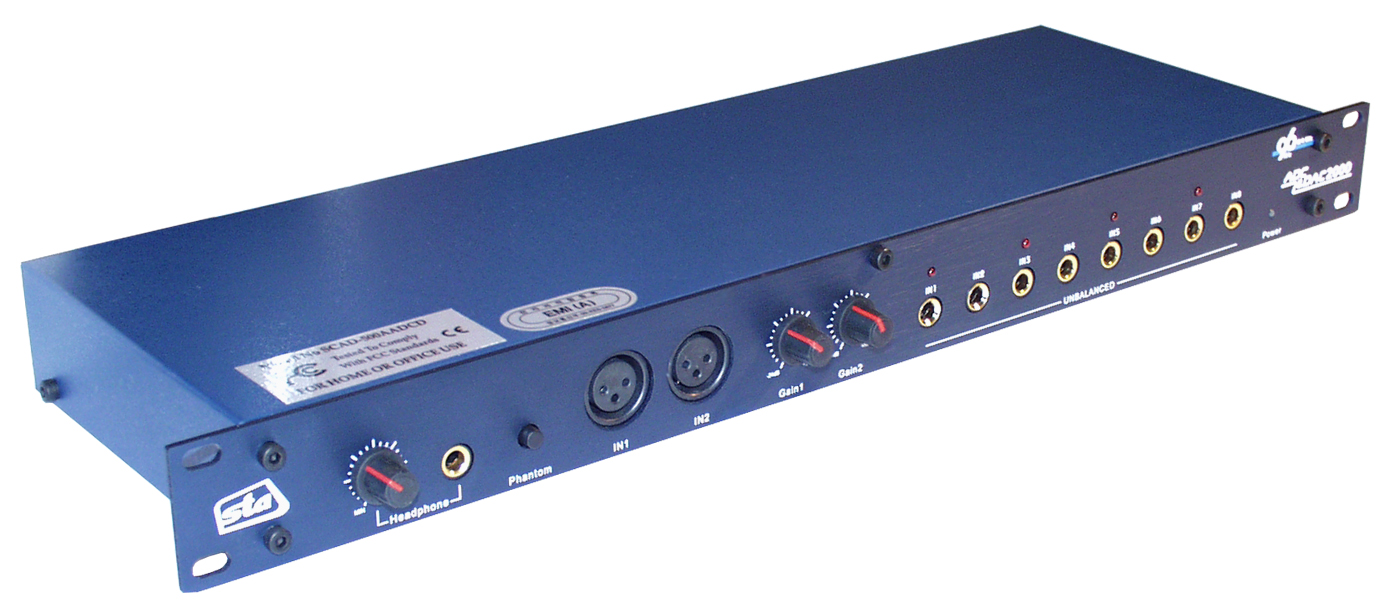

ADC&DAC2000 is an affordable 24bit/96kHz 8 channel ADC & DAC unit for home studio applications. The rackmountable device can be used perfectly together with the DSP24. It's part of the DSP2000 C-Port system.

- enlarged -

Specifications

	AKM AK4524 24bit/96kHz ADC/DAC (100dB dynamic range A-weighted)
	8 analog mono inputs, unbalanced (1/4")
	8 analog mono outputs, unbalanced (1/4")
	channel 1&2 additionally as balanced mono inputs (XLR)
	channel 1&2 additionally as balanced mono outputs (XLR)
	input gain adjustable for channel 1&2 (-24dB to +50dB)
	48V phantompower for channel 1&2 possible
	adjustable headphone output (1/4" stereo)
	1 MIDI in, 2 MIDI out
	direct H-BUS connection possibility for DSP24 / DSP24 MK II
