DAC III

- enlarged -

DAC III is a high-end 24bit/96kHz 8 channel DAC unit. The rackmountable device can be used perfectly together with the DSP24 or DSP24 MK II PCI recording cards using the H-BUS interface.

- enlarged -

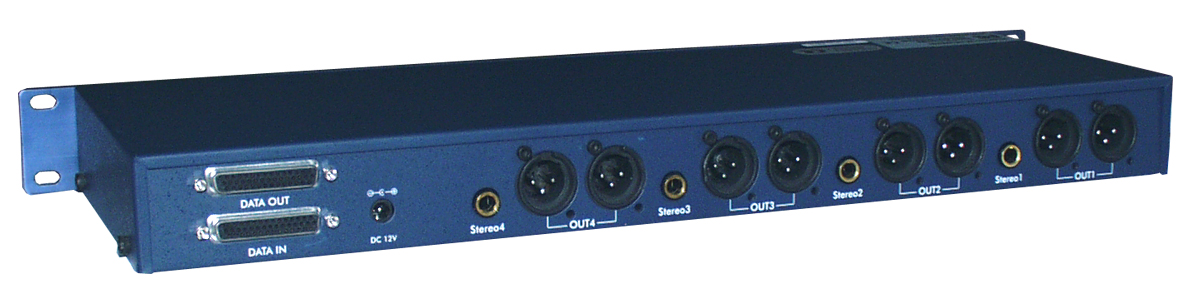

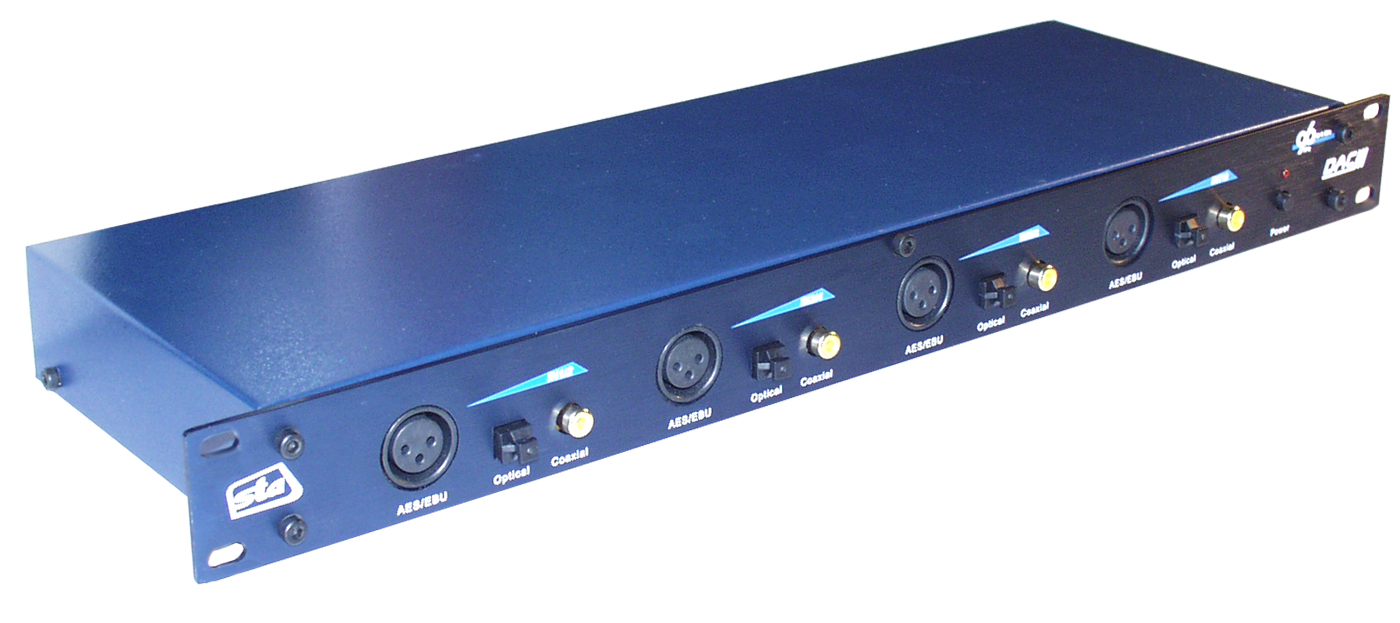

DAC III provides 8 analog output channels via 8 balanced XLR outputs and 4 unbalanced stereo TRS connectors. Each channel pair can be used independand from a connected DSP24 card via one of the four digital inputs on the front (optical and coaxial S/PDIF and AES/EBU).

Together with the ADC III, the DAC III is also part of the powerful ST Audio DSP24 System III multichannel recording system for your PC.

Specifications

AKM 24bit/96kHz DAC (110dB A-weighted). 4 analog TRS stereo outputs, unbalanced (1/4") 8 analog mono outputs, balanced (XLR) 4 digital inputs: each as S/PDIF optical, coaxial & AES/EBU direct H-BUS connection possibility for DSP24 / DSP24 MK II can be used as standalone device power: 12V 1A constant voltage
