DSP24 MEDIA 7.1
Step into
the world of pristine 24bit/96kHz audio quality and superb MIDI synthesis right
on your own home PC!
The DSP24 MEDIA 7.1
is the world's first true 24bit/96kHz PCI full-duplex multi-channel audio/media
interface with an onboard GM/GS hardware synthesizer! Designed with a wide range
of applications in mind, the MEDIA 7.1 is an excellent solution for musicians,
multimedia developers, broadcasters, audiophiles, website designers, DJ's, audio
enthusiasts and others.
DSP24 MEDIA 7.1 is no longer
available. We recommend products from AUDIOTRAK
as replacement.
Whether you want to record
audio (vocals, keyboards, guitar, ...) to your computer, or sequence music using
the onboard hardware synthesizer, the MEDIA 7.1 has all options covered. There
is even a phono pre-amp with RIAA EQ that allows you to connect a turntable
directly to your PC! The included software allows you to record/restore and
transfer your old vinyl records to CD!

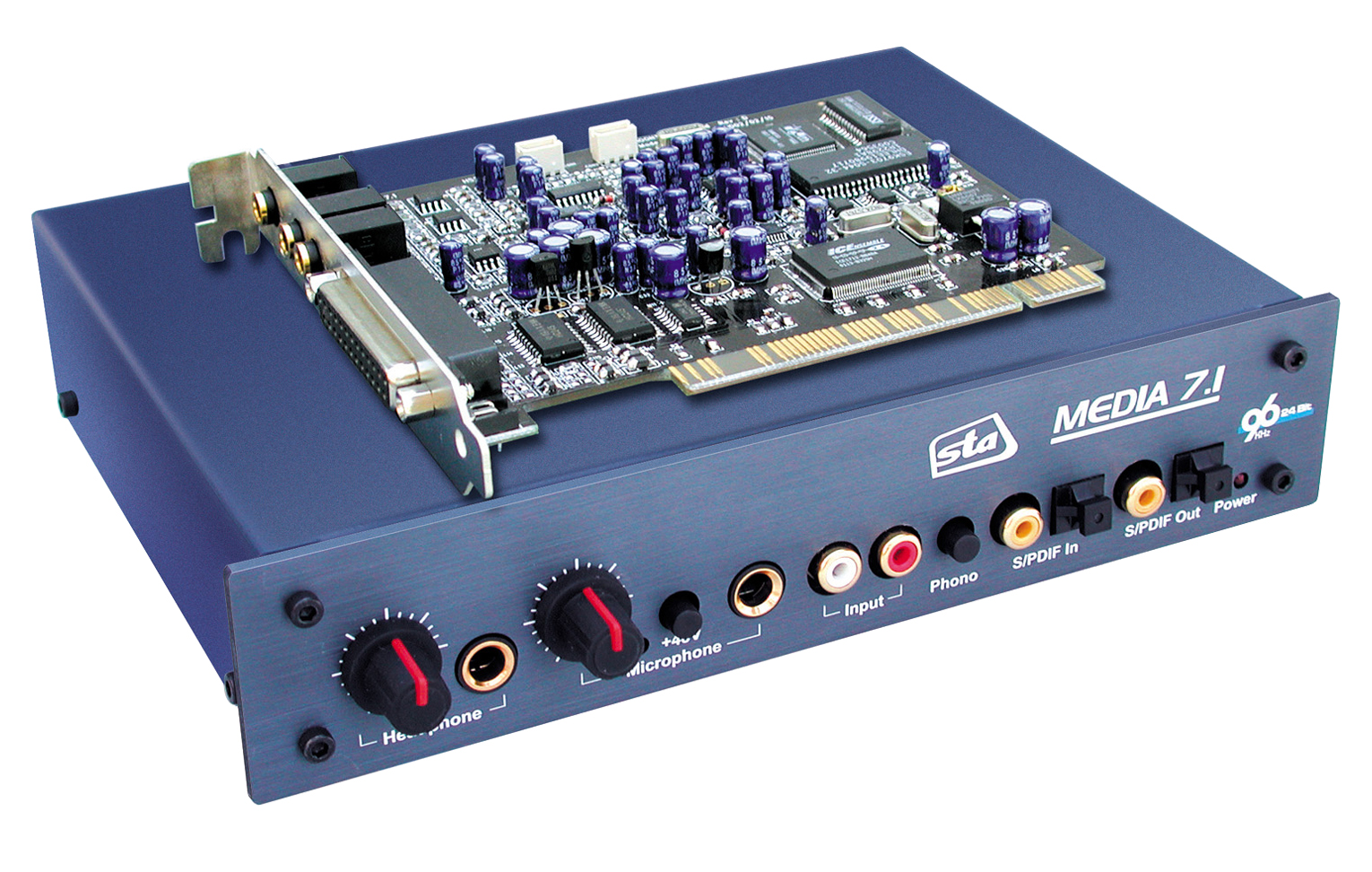

The MEDIA 7.1 package includes
an ultra high quality 24bit/96kHz PCI host card based on ST Audio's professional
line of DSP24 recording interfaces,
a sturdy external interface unit and an assortment of powerful software. A multitude
of hardware connection options are provided including a microphone pre-amp with
gain gain control and phantom power, switchable phone pre-amp (with RIAA EQ)
/ line level anaolog inputs, headphone amplifier, 8 multi channel analog outputs,
and a 16ch MIDI interface.
As its name suggests, the MEDIA
7.1 is a great tool for decoding and playing surround sound too. Use the WinDVD
software from Intervideo included to watch DVD's with your computer and listen
in full surround sound through multi-channel analog outputs.
Excellent driver support and
compatibility is available including Windows 9x/ME/2000/XP with support for
ASIO 2.0 and GSIF. The included ASIO 2.0 drivers of ST Audio's DSP24 series
support 2ms latency at 96kHz and 5ms at 44.1/48kHz (even lower values are supported
under Windows 2000/XP on faster systems). This means for users of modern software
synthesizers (such as GigaStudio or VST-/DXi-plugin instruments) that you can
play your sounds now in realtime, even using realtime effects (like DirectX-
or VST-plugins).
What you get:
| - |
DSP24
MEDIA 7.1 PCI card |
| - |
MEDIA
7.1 interface unit in 9,5" format |
| - |
Emagic
Logic SoundTrack24 - 24bit/96kHz audio/MIDI-sequencer |
| - |
Intervideo WinDVD v3.0 - multichannel DVD playback software |
| - |
DCart32
v4.0 - audio restoration software |
| - |
DART
Karaoke Studio - includes DART CD Recorder 4 Basic |
| - |
Sonic
Foundry ACID XPress 3.0 |
| - |
Sonic
Foundry Siren XPress 2.0 |
What you can do:
| - |
play
up to 7.1 surround sound through the multiple audio outputs |
| - |
simultaneous
full duplex recording and playback offered at 24bit/96kHz |
| - |
record
and playback audio using the 24bit/96kHz AD/DA converters offering 100dB[A]
dynamic range |
| - |
send
and receive digital audio via the optical and coaxial S/PDIF in- and outputs
(up to 24bit/96kHz without resampling) |
| - |
use
the onboard hardware GM/GS synthesizer for sound creation |
| - |
restore
old records by removing hiss, pops and clicks and transfer the results to
audio CDs |
| - |
play
software synthesizers and use effect plugins in real-time with ultra-low
latency |
| - |
record
high quality audio from condenser microphones requiring phantom power |
| - |
monitor
your audio through a high quality headphone amplifier |
| - |
utilize
the onboard 16ch MIDI interface for connection to external keyboards or
sound modules/samplers |
| - |
direct
hardware monitoring (zero latency) of input signals is possible |
Because
the MEDIA 7.1 is an integrated system featuring both hardware and software,
everything works rock-solid as intended. Even so, the MEDIA 7.1 is of course
also fully compatible with all today's latest multi-media applications including
Logic Audio, Cubase VST, Cakewalk, Samplitude, Cool Edit, Acid, Vegas, etc.
The MEDIA 7.1 truly sets new
standards for PC multimedia hardware on today's PC.
| Specifications |
main
features:
 |
2 simultaneous analog input channels, 24bit/96kHz |
|
8
simultaneous analog output channels, 24bit/96kHz |
|
AKM4529 ADC/DAC >100dB S/N ratio (a-weighted) |
|
2
channel S/PDIF I/O (optical + coaxial), 24it/96kHz |
|
totally
4 audio input channels and 10 audio output channels |
|
MIDI
I/O (one 16 channel input, one 16 channel output) |
|
onboard
hardware synthesizer (DREAM / Roland GS soundset) |
|
built-in
internal soundcard (AC-97 Codec): CD In, Aux In, Headphone |
connectors on frontpanel
(9,5" box):
|
1/4" headphone output with adjustable gain |
|
1/4"
balanced microphone input with adjustable gain |
|
switchable
48V phantom power support |
|
2
RCA connectors (Line or Phono/RIAA input) |
|
switch
to select Line/Phono input signal |
|
optical
& coaxial S/PDIF I/O |

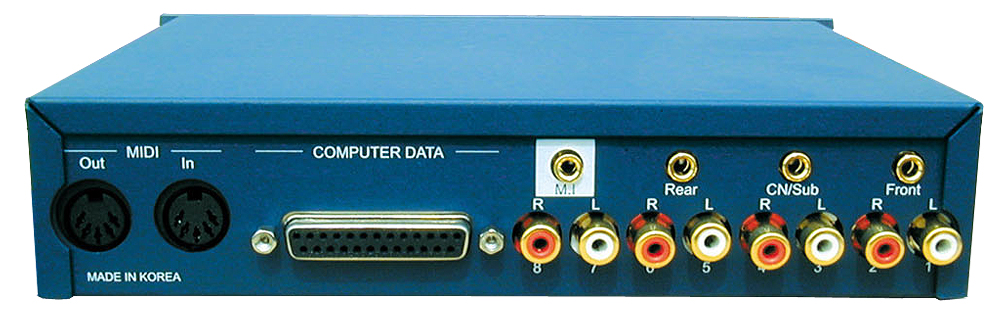

connectors on backside
(9,5" box):
|
MIDI I/O (DIN) |
|
25pin
D-SUB connector to PCI-card |
|
8
RCA output channels |
|
3
1/8" outputs for channel 1~6 |
connectors on PCI-card:
|
mic in (for PC-microphones) |
|
1/8"
line in to connect onboard soundcard or TV card |
|
25pin
D-SUB connector to ext. box |
|
2
internal anlog inputs (CD / Aux) |
software and driver support:
|
drivers for Windows 9x/Me/2000/XP; Windows XP is recommended |
|
ASIO
2.0 support |
|
GSIF
support (multiclient) |
|
ultra
low latency (down to 2ms at 96kHz) |
|
direct
monitoring (zero latency) support |
|
internal
digital mixer (no latency) |
|
includes
audio restauration software: Diamond Cut 32 Art v4.0 |
|
includes
DVD player software: Intervideo WinDVD 3.0 |
|
includes
audio-/MIDI-sequencer: Emagic Logic SoundTrack24 |
|
even
more powerful software included: DART CD Recorder 4 Basic, DART Karaoke
Studio, Sonic Foundry ACID XPress 3.0, Sonic Foundry Siren XPress
2.0 |
Download the complete manual:
MEDIA71.PDF
(5.1MB) |
